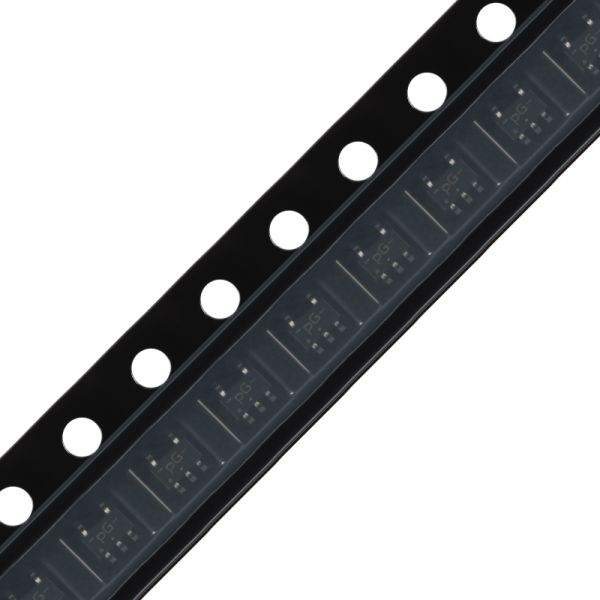

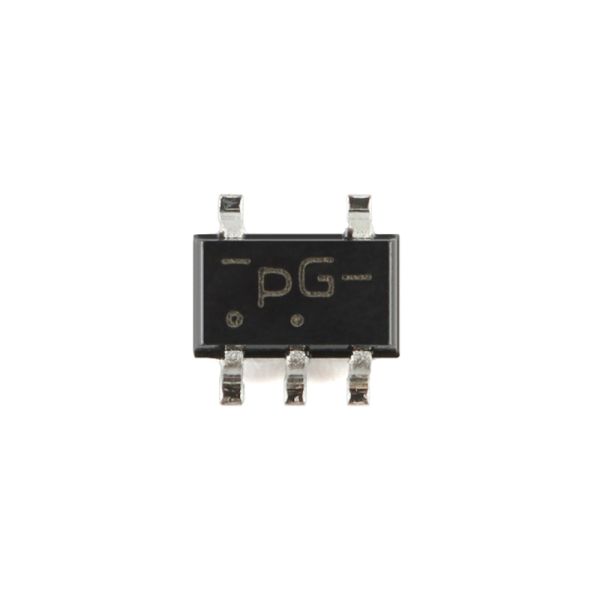

74AUP1G32GW,125 - Single 2-Input OR Gate
This single 2-input OR gate features Schmitt-trigger action at all inputs, making the circuit tolerant of slower input rise and fall times for enhanced signal integrity.
Key Features
- Wide supply voltage range from 0.8 V to 3.6 V
- CMOS low power dissipation
- High noise immunity
- Overvoltage tolerant inputs to 3.6 V
- Low noise overshoot and undershoot < 10% of VCC
- IOFF circuitry provides partial power-down mode operation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Low static power consumption; ICC = 0.9 µA (maximum)
- Complies with JEDEC standards:
- JESD8-12 (0.8 V to 1.3 V)
- JESD8-11 (0.9 V to 1.65 V)
- JESD8-7 (1.2 V to 1.95 V)
- JESD8-5 (1.8 V to 2.7 V)
- JESD8-B (2.7 V to 3.6 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
Package Options
| Type Number |
Temperature Range |
Description |
| 74AUP1G32GW |
-40 °C to +125 °C |
TSSOP5 plastic thin shrink small outline package; 5 leads; body width 1.25 mm SOT353-1 |
| 74AUP1G32GM |
-40 °C to +125 °C |
XSON6 plastic extremely thin small outline package; no leads; 6 terminals; body 1 * 1.45 * 0.5 mm SOT886 |
| 74AUP1G32GN |
-40 °C to +125 °C |
XSON6 extremely thin small outline package; no leads; 6 terminals; body 0.9 * 1.0 * 0.35 mm SOT1115 |
| 74AUP1G32GS |
-40 °C to +125 °C |
XSON6 extremely thin small outline package; no leads; 6 terminals; body 1.0 * 1.0 * 0.35 mm SOT1202 |
| 74AUP1G32GX |
-40 °C to +125 °C |
X2SON5 plastic thermal enhanced extremely thin small outline package; no leads; 5 terminals; body 0.8 * 0.8 * 0.32 mm SOT1226-3 |
