SN74AHC1G02DBVR Single 2-input 2-V To 5.5-V NOR Gate

Product Categories

Shenzhen Filetti Technology Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : TI

Model Number : SN74AHC1G02DBVR

Certification : ROHS

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 5-8days

Packaging Details : T/R

Operating temperature range (°C) : -40 to 125

Rating : Catalog

RoHS : Yes

MSL rating / Peak reflow : Level-1-260C-UNLIM

IOL (max) (mA) : -

IOH (max) (mA) : -

Contact Now

SN74AHC1G02DBVR Single 2-input 2-V To 5.5-V NOR Gate

This device contains a single 2-input NOR gate that performs the Boolean function Y = A × B or Y = A + B in positive logic.

Key Features

Operating Range of 2 V to 5.5 V
Max tpd of 6.5 ns at 5 V
Low Power Consumption, 10-µA Max ICC
±8-mA Output Drive at 5 V
Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time

Applications

Package Information

Part Number	Package	Package Size	Body Size
SN74AHC1G02DBV	(SOT-23, 5)	2.9 mm x 2.8 mm	2.9 mm x 1.6 mm
DCK	(SC-70, 5)	2 mm x 2.1 mm	2 mm × 1.25 mm
DRL	(SOT-553, 5)	1.6 mm x 1.6 mm	1.6 mm × 1.2 mm

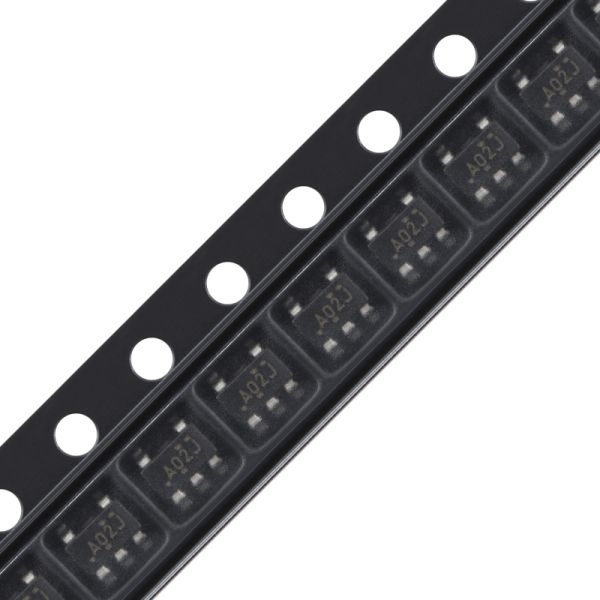

Product Images

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.

Product Tags:

SN74AHC1G02DBVR NOR gate
