SN74AHCT1G02DBVR Single 2-input 4.5-V To 5.5-V NOR Gate With TTL-compatible CMOS Inputs
Product Overview
SN74AHCT1G02DBVR Single 2-input 4.5-V To 5.5-V NOR Gate With TTL-compatible CMOS Inputs
Key Features
- Operating range of 4.5 V to 5.5 V
- Maximum propagation delay of 6.5 ns at 5 V
- Low power consumption, 10-µA max ICC
- ± 8-mA output drive at 5 V
- Inputs are TTL-voltage compatible
- Latch-up performance exceeds 250 mA per JESD 17
Technical Description
This device contains a single 2-input NOR gate that performs the Boolean function Y = A * B or Y = A + B positive logic.
Package Options
| Part Number |
Package |
Package Size |
| SN74AHCT1G02DBV |
SOT-23, 5 |
2.8 mm x 2.8 mm |
| DCK |
SC-70, 5 |
2.1 mm x 1.25 mm |

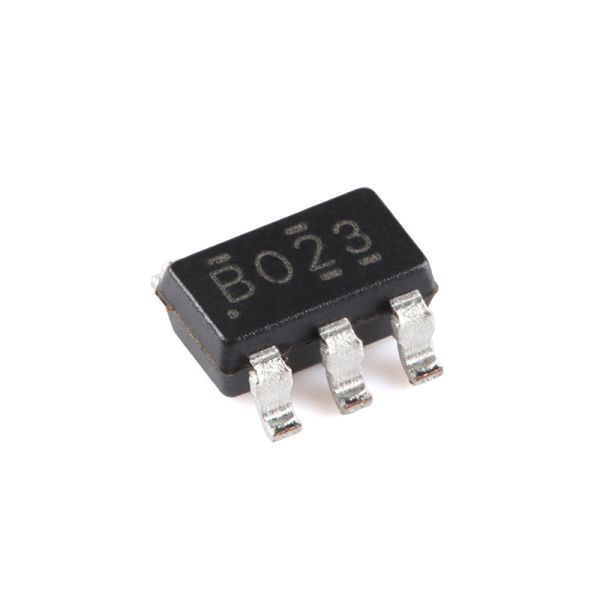

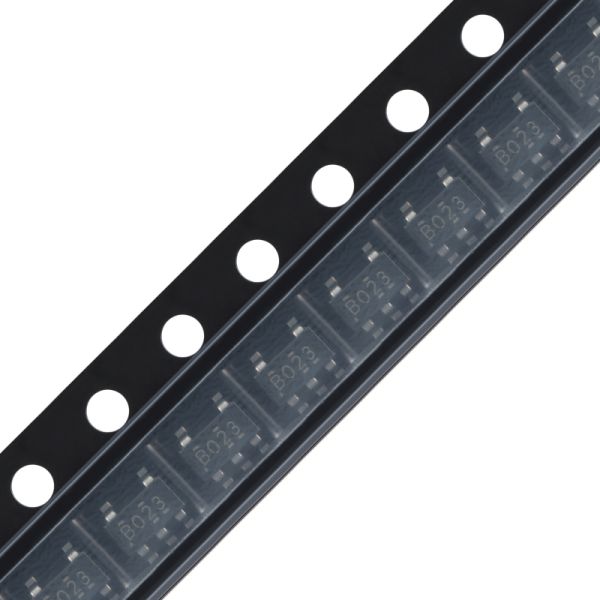

Product Images
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
