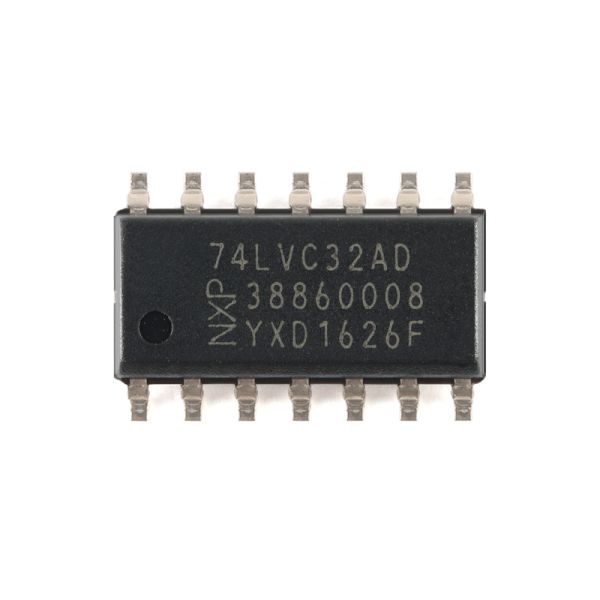

74LVC32AD,118 Quad 2-Input OR Gate
A quad 2-input OR gate with inputs that can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V environments.
Product Overview
The 74LVC32AD,118 is a quad 2-input OR gate designed for versatile operation in mixed voltage environments, supporting both 3.3V and 5V device interfaces.
Key Features
- Wide supply voltage range from 1.2V to 3.6V
- Overvoltage tolerant inputs to 5.5V
- CMOS low power dissipation
- Direct interface with TTL levels
- Complies with JEDEC standards:
- JESD8-7A (1.65V to 1.95V)
- JESD8-5A (2.3V to 2.7V)
- JESD8-C/JESD36 (2.7V to 3.6V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
- Specified from -40°C to +85°C and -40°C to +125°C
Package Information
| Type Number |
Package |
Temperature Range |
Description |
Version |
| 74LVC32AD |
SO14 |
-40°C to +125°C |
Plastic small outline package; 14 leads; body width 3.9mm |
SOT108-1 |
| 74LVC32APW |
TSSOP14 |
-40°C to +125°C |
Plastic thin shrink small outline package; 14 leads; body width 4.4mm |
SOT402-1 |
| 74LVC32ABQ |
DHVQFN14 |
-40°C to +125°C |
Plastic dual in-line compatible thermal enhanced very thin quad flat package; no leads; 14 terminals; body 2.5 * 3 * 0.85mm |
SOT762-1 |
