AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V

Name: AT24C16CSSHMT EEPROM SERIAL EEPROM 16K 2K X 8 2WIRE 17V
Brand: MICROCHIP
Price: 1 USD

Quality AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V for sale

Brand Name : MICROCHIP

Model Number : AT24C16C-SSHM-T

Certification : rohs

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 5-8days

Packaging Details : T/R

Access Time : 450 ns

Supply Voltage - Min : 1.7 V

Supply Voltage - Max : 5.5 V

Mounting Style : SMD/SMT

Maximum Operating Temperature : + 85 C

Minimum Operating Temperature : - 40 C

Contact Now

AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V

Product Overview

The AT24C16C-SSHM-T is a 16K serial EEPROM featuring I2C-compatible 2-wire interface and low-voltage operation from 1.7V to 5.5V. Organized as 2,048 x 8, this memory device offers reliable data storage with advanced protection features.

Standard Features

Low-voltage and standard-voltage operation
VCC = 1.7V to 5.5V
Internally organized as 2,048 x 8 (16K)
I2C-compatible (2-wire) serial interface
Schmitt Trigger, filtered inputs for noise suppression
Bidirectional data transfer protocol
1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) compatibility
Write Protect pin for hardware data protection
16-byte Page Write mode
Partial page writes allowed
Self-timed write cycle (5ms max)
High-reliability design
Endurance: 1,000,000 write cycles
Data retention: 100 years
Green package options (Pb/Halide-free/RoHS compliant)
Available in 8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA
Die options: wafer form and tape and reel

Pin Configuration

Pin Name	Function
NC	No Connect
SDA	Serial Data
SCL	Serial Clock Input
WP	Write Protect
GND	Ground
VCC	Power Supply

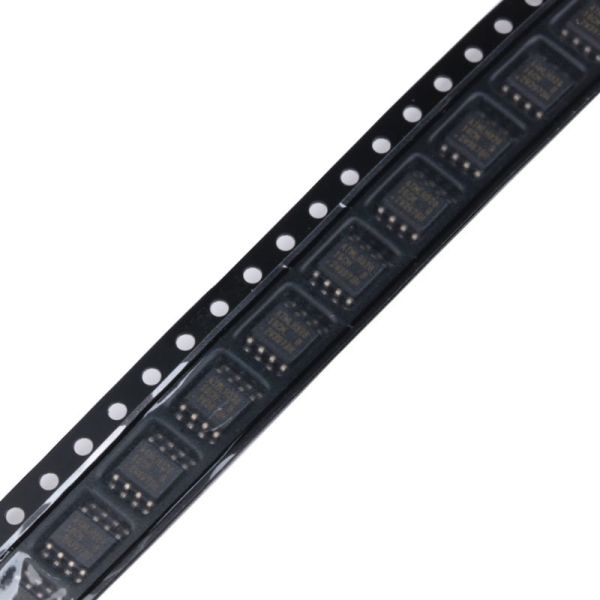

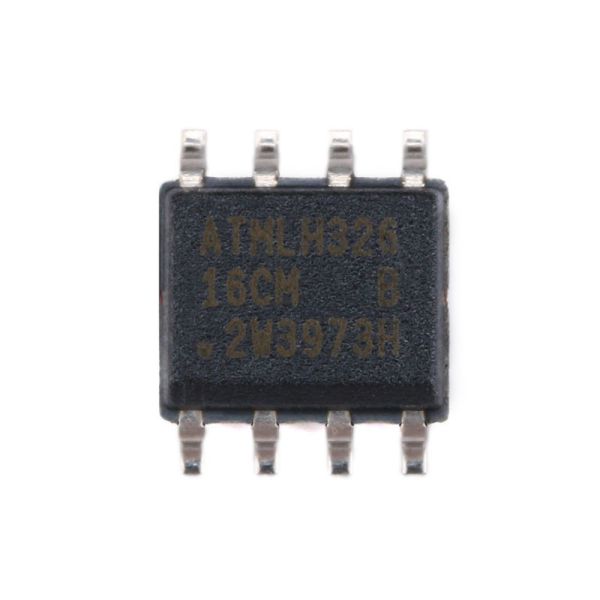

Product Images

AT24C16C-SSHM-T EEPROM SERIAL EEPROM 16K 2K X 8 2-WIRE 1.7V

Product Tags:

AT24C16C EEPROM 16K memory

serial EEPROM 2-wire interface

1.7V low voltage EEPROM
