M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz

Brand Name : ST

Model Number : M24C16-WMN6TP

Certification : rohs

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 100000

Delivery Time : 5-8days

Packaging Details : T/R

Operating Temperature : -40℃~+85℃

operating voltage : 2.5V~5.5V

Interface Type : I2C

Storage Capadity : 16Kbit

Clock Frequency (fc) : 400kHz

Write Cycle Time (Tw) : 5ms

Contact Now

M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs

The M24C16 series are 16-Kbit Serial I²C Bus EEPROMs available in multiple voltage variants for diverse application requirements.

Key Features

Compatible with all I²C bus modes: 400 kHz and 100 kHz
Memory array: 16 Kbit (2 Kbyte) of EEPROM with 16-byte page size
Single supply voltage options:
- M24C16-W: 2.5 V to 5.5 V
- M24C16-R: 1.8 V to 5.5 V
- M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
Write operations: Byte Write and Page Write within 5 ms
Operating temperature range: -40 °C to +85 °C
Random and sequential Read modes
Write protect of the whole memory array
Enhanced ESD/Latch-Up protection
More than 4 million Write cycles
More than 200-years data retention

Pin Configuration

Signal Name	Function	Direction
SDA	Serial Data	I/O
SCL	Serial Clock	Input
WC	Write Control	Input
VCC	Supply Voltage	-
VSS	Ground	-

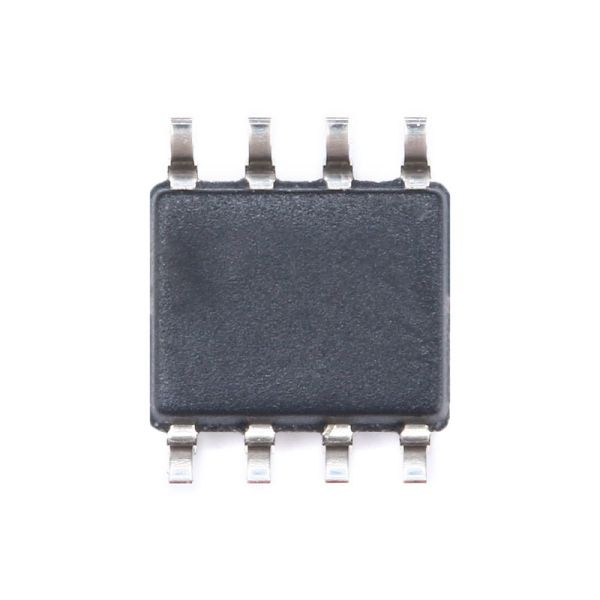

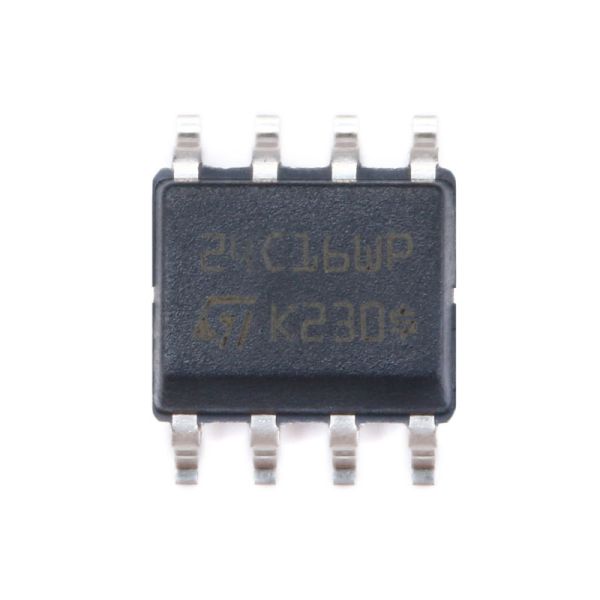

Product Images

M24C16-WMN6TP 16-Kbit Serial I²C Bus EEPROMs 5ms 400kHz

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
