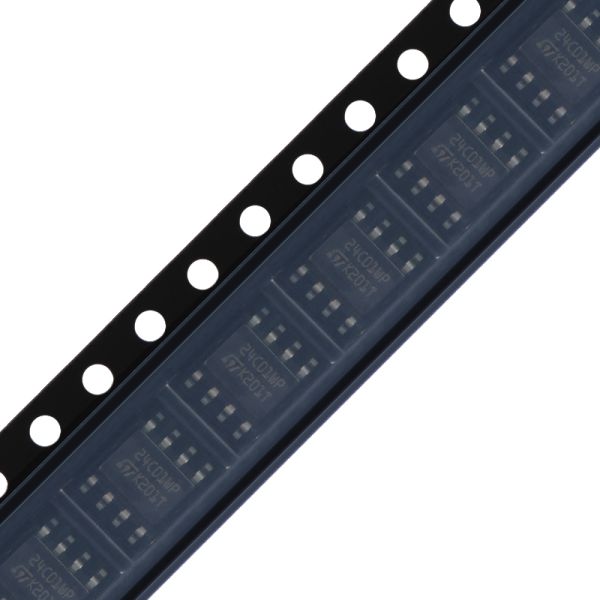

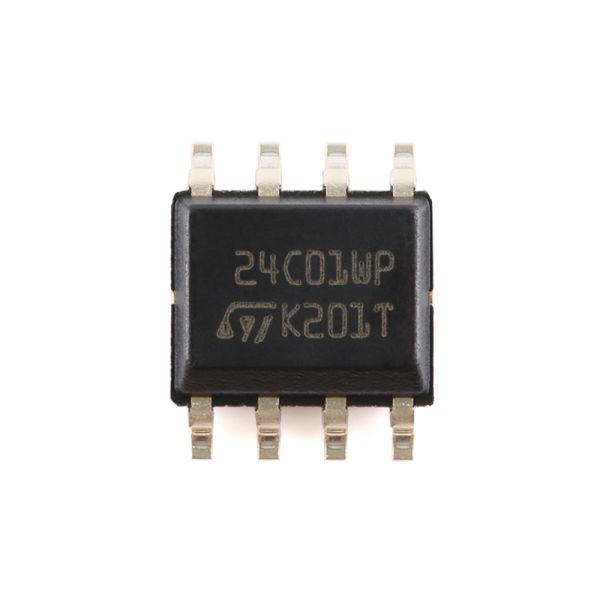

M24C01-WMN6TP 16Kbit 8Kbit 4Kbit 2Kbit And 1Kbit Serial I²C Bus EEPROM
The M24C01-WMN6TP is a high-performance Serial I²C Bus EEPROM available in multiple memory capacities including 16Kbit, 8Kbit, 4Kbit, 2Kbit, and 1Kbit configurations, designed for reliable data storage in industrial applications.
Key Features
- Supports both 100 kHz I2C Standard-mode and 400 kHz I2C Fast-mode operation
- Wide voltage range compatibility:
- 2.5V to 5.5V for M24Cxx-W series
- 1.8V to 5.5V for M24Cxx-Rev 16 series
- 1.7V to 5.5V for M24Cxx-F series
- Write Control input for enhanced data protection
- Byte and Page Write capabilities (up to 16 bytes per page)
- Random and Sequential Read modes for flexible data access
- Self-timed programming cycle for simplified operation
- Automatic address incrementing during sequential operations
- Enhanced ESD and latch-up protection
- Exceptional endurance: More than 1 million write cycles
- Long-term reliability: Over 40-year data retention
- Multiple package options:
- SO8, TSSOP8, UFDFPN8: ECOPACK2® (RoHS-compliant and Halogen-free)
- PDIP8: ECOPACK1® (RoHS-compliant)
Device Summary
| Reference |
Part Number |
| M24C16 |
M24C16-W |
| M24C16-R |
M24C16-F |
| M24C08 |
M24C08-W |
| M24C08-R |
M24C08-F |
| M24C04 |
M24C04-W |
| M24C04-R |
M24C04-F |
| M24C02 |
M24C02-W |
| M24C02-R |
M24C01 |
| M24C01-W |
M24C01-R |
