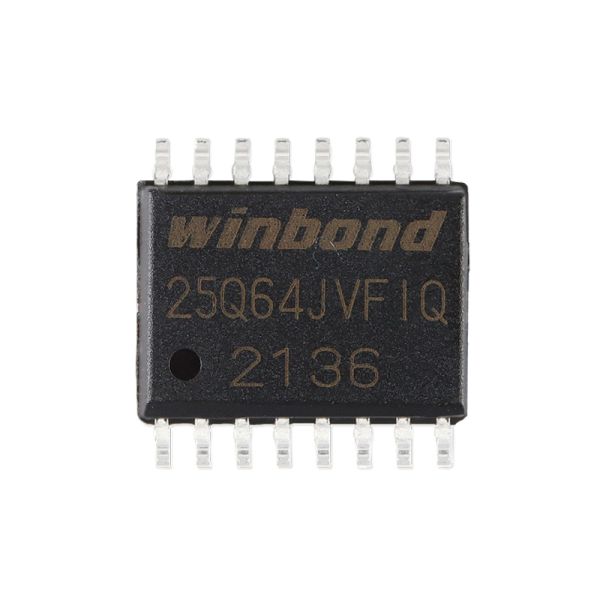

W25Q64JVSFIQ NOR FLASH 3V 64M-Bit Serial Flash Memory with Dual/Quad SPI
High-performance 64M-bit serial flash memory supporting standard, dual, and quad SPI interfaces for versatile embedded applications.
Key Features
SpiFlash Memory Family
- W25Q64JV: 64M-bit / 8M-byte capacity
- Standard SPI: CLK, /CS, DI, DO
- Dual SPI: CLK, /CS, IO0, IO1
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset
High Performance Specifications
- 133MHz Single, Dual/Quad SPI clocks
- 266/532MHz equivalent Dual/Quad SPI performance
- Minimum 100K Program-Erase cycles per sector
- More than 20-year data retention
Power & Environmental Specifications
- Single 2.7 to 3.6V supply voltage
- <1µA Power-down (typical)
- -40°C to +85°C operating range
- -40°C to +105°C operating range option
Flexible Memory Architecture
- 4KB sector organization
- Uniform Sector/Block Erase (4K/32K/64K-Byte)
- Program 1 to 256 bytes per programmable page
- Erase/Program Suspend & Resume functionality
Pin Configuration
| Pin No. |
Pin Name |
I/O |
Function |
| 1 |
/HOLD or /RESET (IO3) |
I/O |
Hold or Reset Input (Data Input Output 3) |
| 2 |
VCC |
Power |
Supply |
| 3 |
/RESET |
I |
Reset Input |
| 4 |
N/C |
|
No Connect |
| 5 |
N/C |
|
No Connect |
| 6 |
N/C |
|
No Connect |
| 7 |
/CS |
I |
Chip Select Input |
| 8 |
DO (IO1) |
I/O |
Data Output (Data Input Output 1) |
| 9 |
/WP (IO2) |
I/O |
Write Protect Input (Data Input Output 2) |
| 10 |
GND |
|
Ground |
| 11 |
N/C |
|
No Connect |
| 12 |
N/C |
|
No Connect |
| 13 |
N/C |
|
No Connect |
| 14 |
N/C |
|
No Connect |
| 15 |
DI (IO0) |
I/O |
Data Input (Data Input Output 0) |
| 16 |
CLK |
I |
Serial Clock Input |
