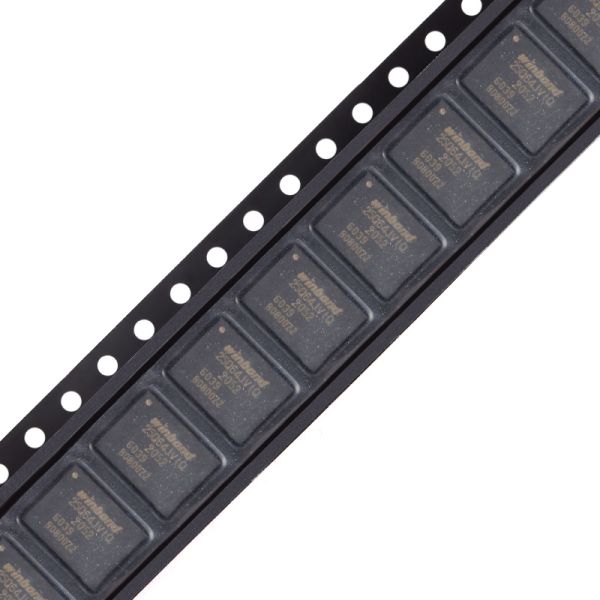

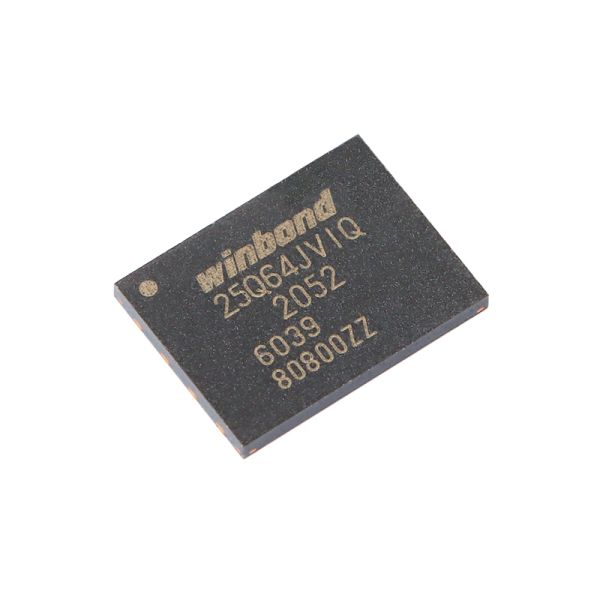

W25Q64JVZEIQ 3V 64M-Bit Serial Flash Memory with Dual/Quad SPI
High-performance 64M-bit serial flash memory supporting standard SPI, dual SPI, and quad SPI interfaces with advanced security features and flexible architecture.
Key Features
New Family of SpiFlash Memories
- W25Q64JV: 64M-bit / 8M-byte capacity
- Standard SPI: CLK, /CS, DI, DO
- Dual SPI: CLK, /CS, IO0, IO1
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- Software & Hardware Reset
Highest Performance Serial Flash
- 133MHz Single, Dual/Quad SPI clocks
- 266/532MHz equivalent Dual/Quad SPI performance
- Minimum 100K Program-Erase cycles per sector
- More than 20-year data retention
Low Power, Wide Temperature Range
- Single 2.7 to 3.6V supply
- <1µA Power-down (typical)
- -40°C to +85°C operating range
- -40°C to +105°C operating range option
Flexible Architecture with 4KB Sectors
- Uniform Sector/Block Erase (4K/32K/64K-Byte)
- Program 1 to 256 byte per programmable page
- Erase/Program Suspend & Resume functionality
Advanced Security Features
- Software and Hardware Write-Protect
- Special OTP (One-Time Programmable) protection
- Top/Bottom, Complement array protection
- Individual Block/Sector array protection
- 64-Bit Unique ID for each device
- Discoverable Parameters (SFDP) Register
- 3X256-Bytes Security Registers
- Volatile & Non-volatile Status Register Bits
Space Efficient Packaging Options
- 8-pin SOIC 208-mil
- 8-pad WSON 6x5-mm/8x6-mm
- 16-pin SOIC 300-mil
- 8-pad XSON 4x4-mm
- 24-ball TFBGA 8x6-mm (6x4 ball array)
- 24-ball TFBGA 8x6-mm (6x4/5x5 ball array)
- 12-ball WLCSP
- Contact Winbond for KGD and other options
Pin Configuration
| Pad No. |
Pad Name |
I/O |
Function |
| 1 |
/CS |
I |
Chip Select Input |
| 2 |
DO (IO1) |
I/O |
Data Output (Data Input Output 1) |
| 3 |
/WP (IO2) |
I/O |
Write Protect Input (Data Input Output 2) |
| 4 |
GND |
|
Ground |
| 5 |
DI (IO0) |
I/O |
Data Input (Data Input Output 0) |
| 6 |
CLK |
I |
Serial Clock Input |
| 7 |
/HOLD or /RESET(IO3) |
I/O |
Hold or Reset Input (Data Input Output 3) |
| 8 |
VCC |
|
Power Supply |
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
