PCF85063ATL/1,118 Tiny Real-Time Clock/Calendar With Alarm Function And I2C-Bus

Brand Name : NXP

Model Number : PCF85063ATL/1,118

Certification : ROHS

Place of Origin : CN

MOQ : 1

Price : consult with

Payment Terms : T/T,Western Union

Supply Ability : 10000

Delivery Time : 5-8day

Packaging Details : T/R

Product Category : Real Time Clock

RTC Bus Interface : I2C

Operating temperature range (°C) : -40℃~+85℃

Supply voltage (min) (V) : 900mV

Supply voltage (max) (V) : 5.5V

Operating current : 220nA

Contact Now

PCF85063ATL/1,118 Tiny Real-Time Clock/Calendar With Alarm Function And I2C-Bus
Product Overview
PCF85063ATL/1,118 Tiny Real-Time Clock/Calendar With Alarm Function And I2C-Bus
Type number Topside Packagemarking Name Description Version
PCF85063AT 85063A SO8 Plastic small outline package; 8 leads; body width 3.9 mm SOT96-1
PCF85063ATL 063A DFN2626-10 Plastic thermal enhanced thin small outline package; no leads; 10 terminals; body 2.6 * 2.6 * 0.5 mm SOT1197-1
PCF85063ATT 063A TSSOP8 Plastic thin shrink small outline package; 8 leads; body width 3 mm SOT505-1
Key Features
  • Provides year, month, day, weekday, hours, minutes, and seconds based on a 32.768 kHz quartz crystal
  • Clock operating voltage: 0.9 V to 5.5 V
  • Low current; typical 0.22 μA at VDD = 3.3 V and Tamb = 25 °C
  • 400 kHz two-line I2C-bus interface (at VDD = 1.8 V to 5.5 V)
  • Programmable clock output for peripheral devices (32.768 kHz, 16.384 kHz, 8.192 kHz, 4.096 kHz, 2.048kHz, 1.024 kHz, and 1 Hz)
  • Selectable integrated oscillator load capacitors for CL = 7 pF or CL = 12.5 pF
  • Alarm function
  • Countdown timer
  • Minute and a half minute interrupted
  • Oscillator stop detection function
  • Internal power-on reset (POR)
  • Programmable offset register for frequency adjustment

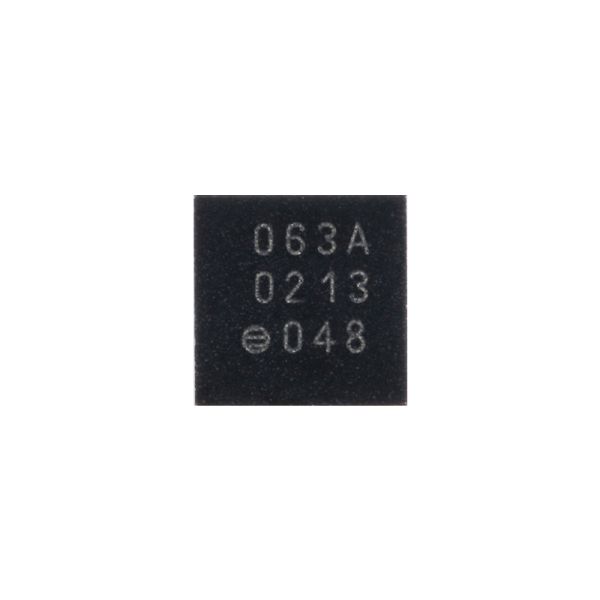

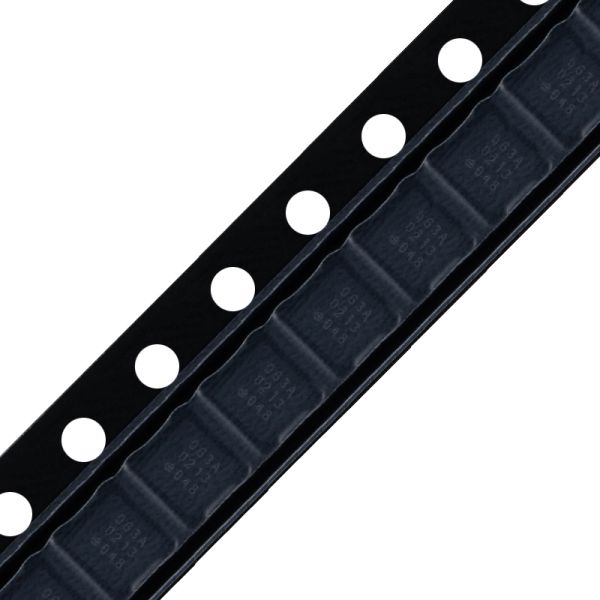

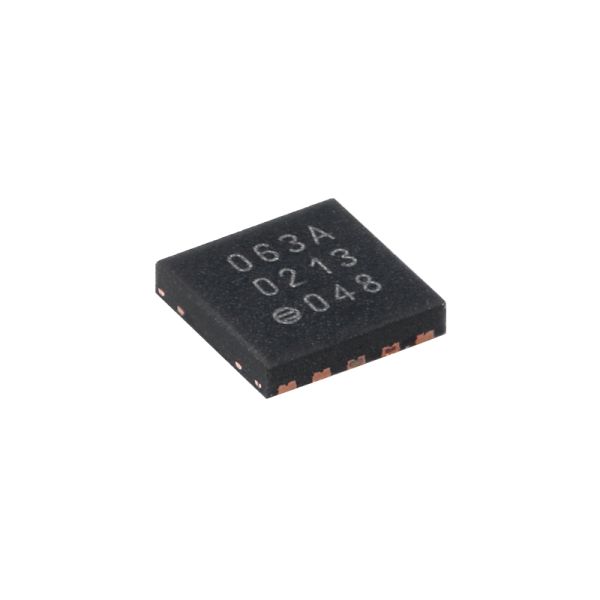

Product Images
PCF85063ATL/1,118 Tiny Real-Time Clock/Calendar With Alarm Function And I2C-Bus PCF85063ATL/1,118 Tiny Real-Time Clock/Calendar With Alarm Function And I2C-Bus PCF85063ATL/1,118 Tiny Real-Time Clock/Calendar With Alarm Function And I2C-Bus
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
